Android Studio

Android Studio is a free IDE for Android development made by Google and JetBrains. It's based on IntelliJ IDEA and has a feature-rich editor which supports Java and C/C++. It can be used to work on Godot's core engine as well as the Android platform codebase.

导入项目

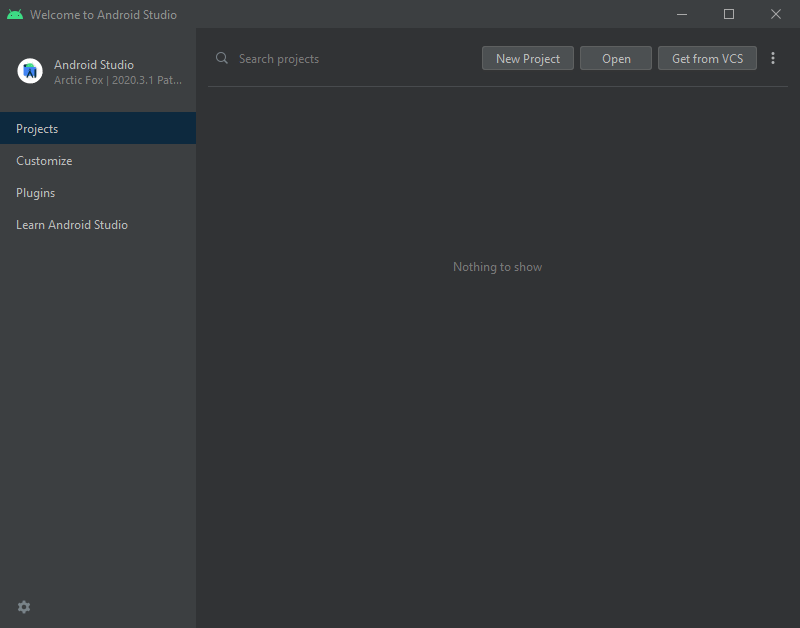

• From the Android Studio's welcome window select Open.

Android Studio 的欢迎界面.

• Navigate to <Godot root directory>/platform/android/java and select the settings.gradle file.

• Android Studio 将导入项目并为其编制索引.

Android Studio 项目结构

你可以使用 Android Studio 4.1或更高版本 进行安装：

• lib module:

  • Located under <Godot root directory>/platform/android/java/lib, this is a library module that organizes

    the Godot java and native code and make it available as a reusable dependency / artifact.

  • The artifact generated by this module is made available for other Android modules / projects to use as a dependency, via MavenCentral.

• editor 模块：

  • 位于 <Godot 根目录>/platform/android/java/editor 中，这就是一个应用程序模块，

    存放的是 Godot Editor 的 Android 移植版的源代码。

  • 这个模块依赖于 lib 模块。

• app 模块：

  • 位于 <Godot 根目录>/platform/android/java/app 中，这就是一个应用程序模块，

    存放的是 Android 构建模板的源代码。

  • 这个模块依赖于 lib 模块。

编辑器模块的构建与调试

• 要构建 editor 模块：

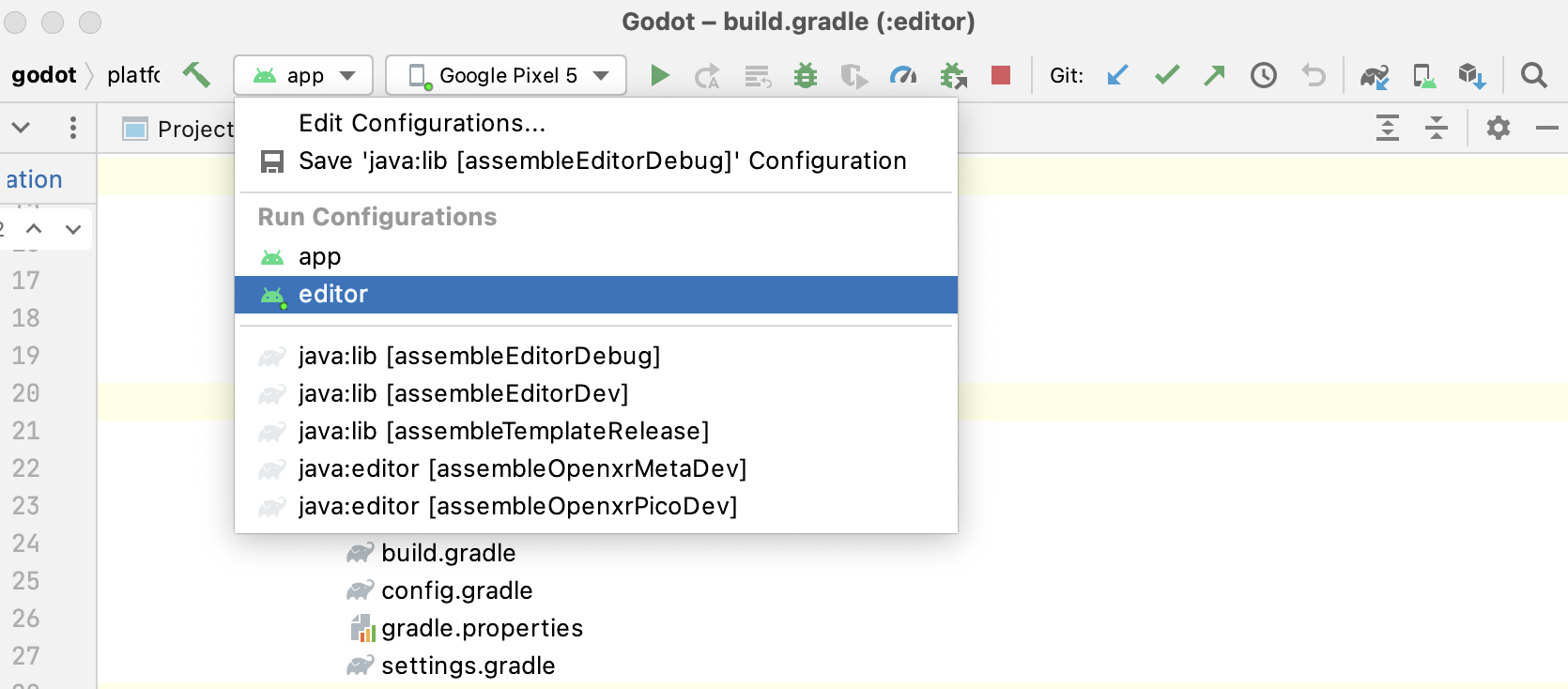

  • Select the Run/Debug Configurations drop down and select editor.



  • Select Run > Run 'editor' from the top menu or click the Run icon.

• 要调试 editor 模块：

  • Open the Build Variants window using View > Tools Windows > Build Variants from the top menu.

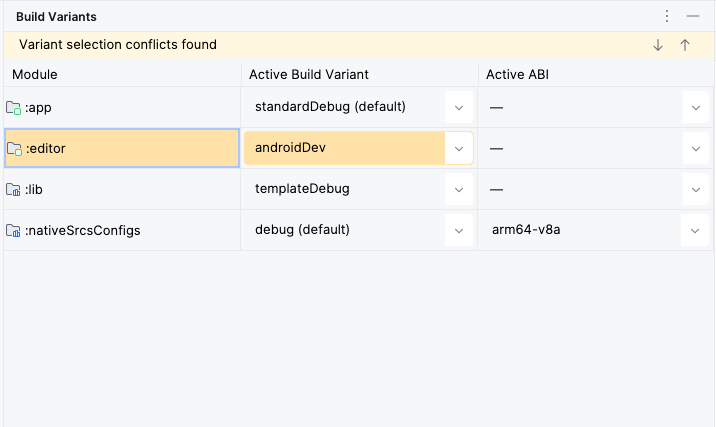

  • In the Build Variants window, make sure that in the Active Build Variant column, the :editor entry is set to one of the Dev variants.



  • Open the Run/Debug Configurations window by clicking on Run > Edit Configurations... on the top menu.

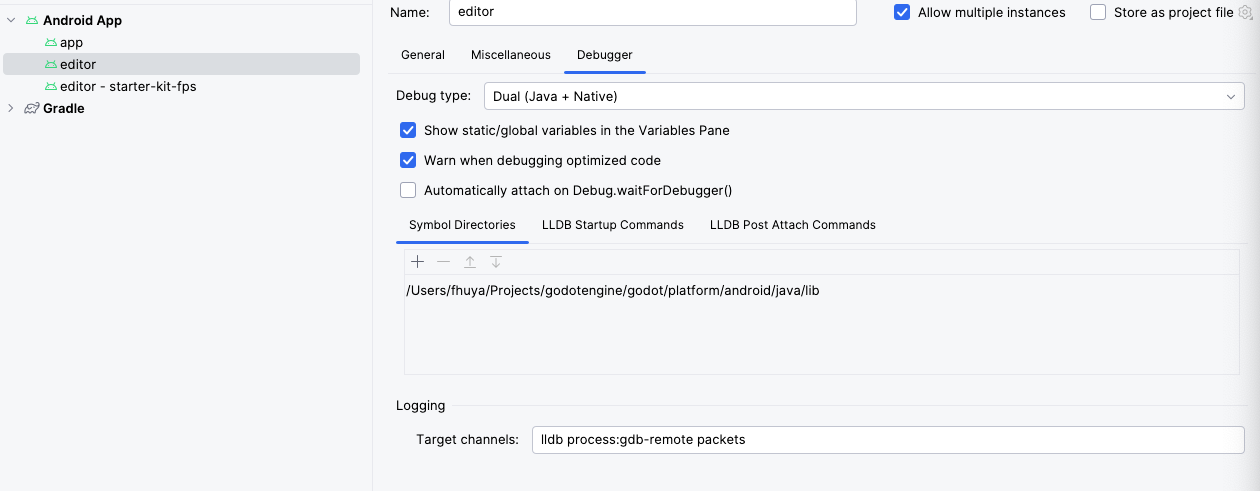

  • In the Run/Debug Configurations window, select the editor entry, and under Debugger make sure the Debug Type is set to Dual (Java + Native)

  • Click the + sign under the Symbol Directories section, and add the lib module directory: platform/android/java/lib



  • Select Run > Debug 'editor' from the top menu or click the Debug icon.

应用模块的构建与调试

The app module requires the presence of a Godot project in its assets directory (<Godot root directory>/platform/android/java/app/assets) to run. This is usually handled by the Godot Editor during the export process. While developing in Android Studio, it's necessary to manually add a Godot project under that directory to replicate the export process. Once that's done, you can follow the instructions below to run/debug the app module:

• 要构建 app 模块：

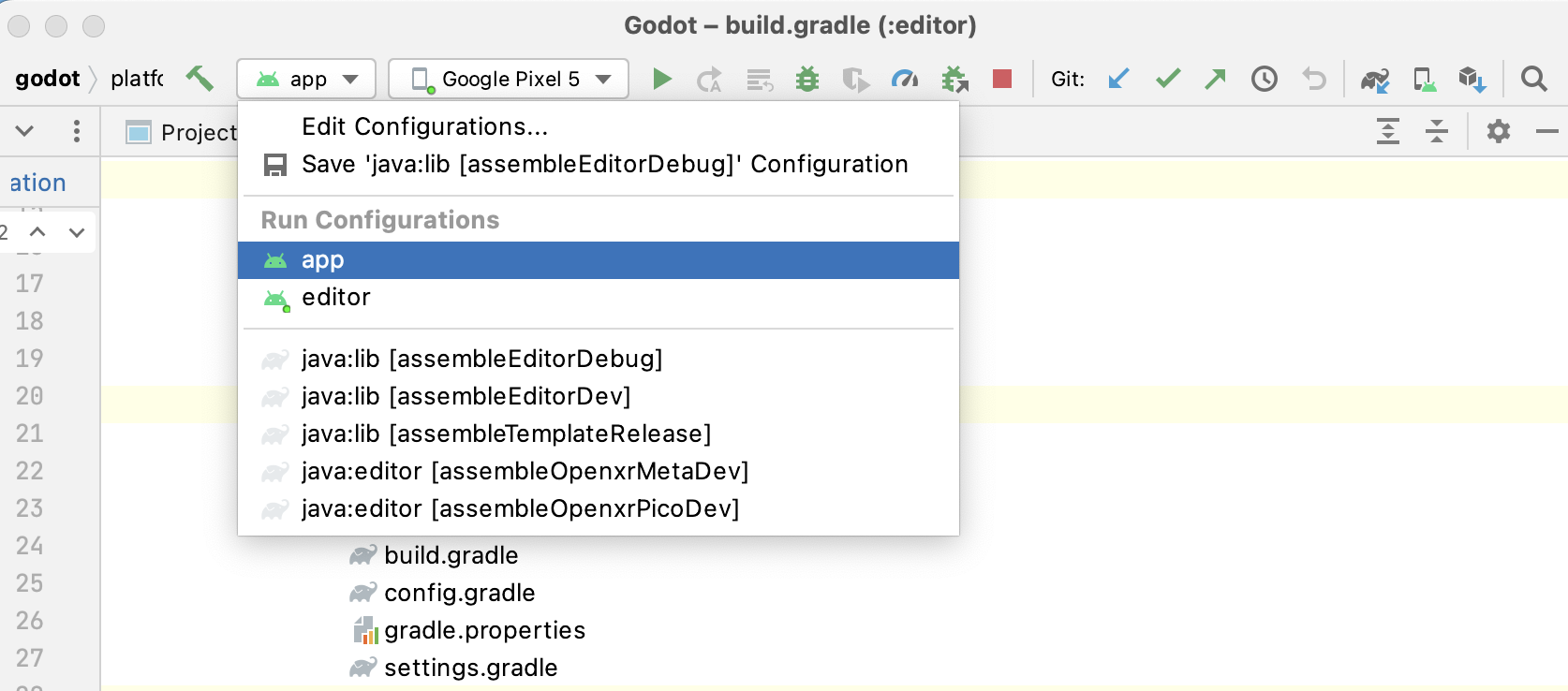

  • Select the Run/Debug Configurations drop down and select app.



  • Select Run > Run 'app' from the top menu or click the Run icon.

• 要调试 app 模块：

  • Open the Build Variants window using View > Tools Windows > Build Variants from the top menu.

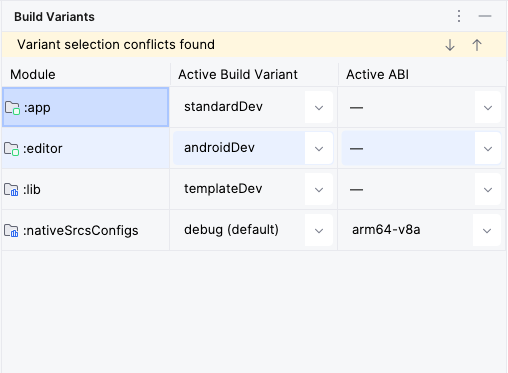

  • In the Build Variants window, make sure that in the Active Build Variant column, the :app entry is set to one of the Dev variants.



  • Open the Run/Debug Configurations window by clicking on Run > Edit Configurations... on the top menu.

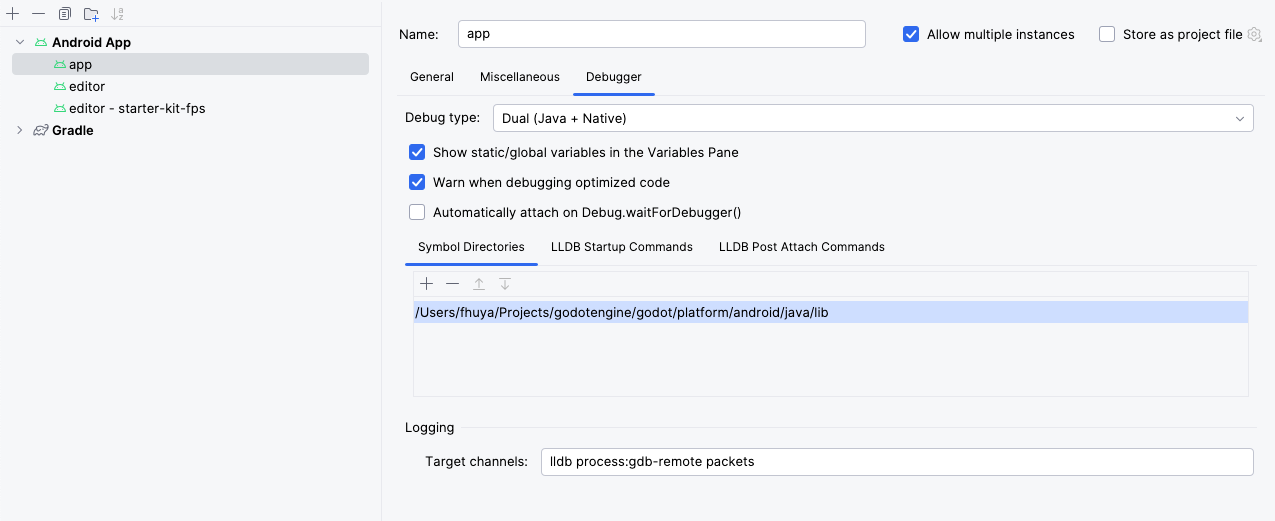

  • In the Run/Debug Configurations window, select the app entry, and under Debugger make sure the Debug Type is set to Dual (Java + Native)

  • Click the + sign under the Symbol Directories section, and add the lib module directory: platform/android/java/lib



  • Select Run > Debug 'app' from the top menu or click the Debug icon.

If you run into any issues, ask for help in Godot's Android dev channel.
