发射射线

前言

通过发射射线（和自定义形状的对象）来检测命中的物体是游戏开发中最常见的任务之一。这是 AI 等复杂行为的基础。本教程将介绍在 2D 和 3D 中的实现方法。

Godot stores all the low-level game information in servers, while the scene is only a frontend. As such, ray casting is generally a lower-level task. For simple raycasts, nodes like RayCast3D and RayCast2D will work, as they return every frame what the result of a raycast is.

但是很多时候，射线投射需要更具交互性，因此必须存在通过代码执行此操作的方法。

空间

In the physics world, Godot stores all the low-level collision and physics information in a space. The current 2d space (for 2D Physics) can be obtained by accessing CanvasItem.get_world_2d().space. For 3D, it's Node3D.get_world_3d().space.

对于 3D 和 2D，得到的空间 RID 可分别在 PhysicsServer3D 和 PhysicsServer2D 中使用。

获取空间

Godot 物理默认与游戏逻辑在同一个线程中运行，但可以设置为在单独的线程中运行以提高效率。因此，唯一安全访问空间的时间是在 Node._physics_process() 回调期间。从该函数之外访问空间可能会产生一个错误，因为空间会被锁定。

To perform queries into physics space, the PhysicsDirectSpaceState2D and PhysicsDirectSpaceState3D must be used.

在 2D 中使用以下代码：

func _physics_process(delta):
    var space_rid = get_world_2d().space
    var space_state = PhysicsServer2D.space_get_direct_state(space_rid)

public override void _PhysicsProcess(double delta)
{
    var spaceRid = GetWorld2D().Space;
    var spaceState = PhysicsServer2D.SpaceGetDirectState(spaceRid);
}

或者更直接：

func _physics_process(delta):
    var space_state = get_world_2d().direct_space_state

public override void _PhysicsProcess(double delta)
{
    var spaceState = GetWorld2D().DirectSpaceState;
}

在 3D 中：

func _physics_process(delta):
    var space_state = get_world_3d().direct_space_state

public override void _PhysicsProcess(double delta)
{
    var spaceState = GetWorld3D().DirectSpaceState;
}

Raycast 查询

要执行 2D 射线查询，可以使用 PhysicsDirectSpaceState2D.intersect_ray() 方法。例如：

func _physics_process(delta):
    var space_state = get_world_2d().direct_space_state
    # use global coordinates, not local to node
    var query = PhysicsRayQueryParameters2D.create(Vector2(0, 0), Vector2(50, 100))
    var result = space_state.intersect_ray(query)

public override void _PhysicsProcess(double delta)
{
    var spaceState = GetWorld2D().DirectSpaceState;
    // use global coordinates, not local to node
    var query = PhysicsRayQueryParameters2D.Create(Vector2.Zero, new Vector2(50, 100));
    var result = spaceState.IntersectRay(query);
}

结果是一个字典。如果射线什么都没有击中，那么字典就是空的。如果击中了，就会包含碰撞信息：

if result:
    print("Hit at point: ", result.position)

if (result.Count > 0)
{
    GD.Print("Hit at point: ", result["position"]);
}

发生碰撞时，result 字典包含以下数据：

{
   position: Vector2 # point in world space for collision
   normal: Vector2 # normal in world space for collision
   collider: Object # Object collided or null (if unassociated)
   collider_id: ObjectID # Object it collided against
   rid: RID # RID it collided against
   shape: int # shape index of collider
   metadata: Variant() # metadata of collider
}

3D 空间中的数据也是类似的，只不过使用的是 Vector3 坐标。请注意，要启用与 Area3D 的碰撞，必须将布尔值参数 collide_with_areas 设置为 true。

const RAY_LENGTH = 1000

func _physics_process(delta):
    var space_state = get_world_3d().direct_space_state
    var cam = $Camera3D
    var mousepos = get_viewport().get_mouse_position()

    var origin = cam.project_ray_origin(mousepos)
    var end = origin + cam.project_ray_normal(mousepos) * RAY_LENGTH
    var query = PhysicsRayQueryParameters3D.create(origin, end)
    query.collide_with_areas = true

    var result = space_state.intersect_ray(query)

private const int RayLength = 1000;

public override void _PhysicsProcess(double delta)
{
    var spaceState = GetWorld3D().DirectSpaceState;
    var cam = GetNode<Camera3D>("Camera3D");
    var mousePos = GetViewport().GetMousePosition();

    var origin = cam.ProjectRayOrigin(mousePos);
    var end = origin + cam.ProjectRayNormal(mousePos) * RayLength;
    var query = PhysicsRayQueryParameters3D.Create(origin, end);
    query.CollideWithAreas = true;

    var result = spaceState.IntersectRay(query);
}

碰撞例外

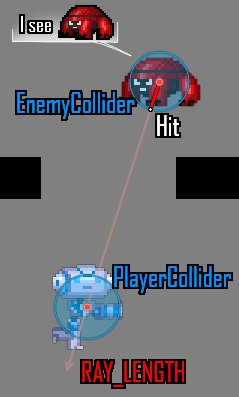

光线投射的常见用例是使角色能够收集有关其周围世界的数据。这种情况的一个问题是该角色上有碰撞体，因此光线只会检测到其父节点上的碰撞体，如下图所示：

../../_images/raycast_falsepositive.webp

为了避免自相交，intersect_ray() 参数对象可以通过其 exclude 属性获取一个排除数组。这是一个如何从 CharacterBody2D 或任何其他碰撞对象节点使用它的示例：

extends CharacterBody2D

func _physics_process(delta):
    var space_state = get_world_2d().direct_space_state
    var query = PhysicsRayQueryParameters2D.create(global_position, player_position)
    query.exclude = [self]
    var result = space_state.intersect_ray(query)

using Godot;

public partial class MyCharacterBody2D : CharacterBody2D
{
    public override void _PhysicsProcess(double delta)
    {
        var spaceState = GetWorld2D().DirectSpaceState;
        var query = PhysicsRayQueryParameters2D.Create(globalPosition, playerPosition);
        query.Exclude = [GetRid()];
        var result = spaceState.IntersectRay(query);
    }
}

例外数组可以包含对象或 RID。

碰撞遮罩

虽然例外方法适用于排除父体, 但如果需要大型和/或动态的例外列表, 则会变得非常不方便. 在这种情况下, 使用碰撞层/遮罩系统要高效得多.

intersect_ray() 参数对象也可以提供一个碰撞掩码。例如，要使用与父物体相同的掩码，请使用 collision_mask 成员变量。排除数组也可以作为最后一个参数提供：

extends CharacterBody2D

func _physics_process(delta):
    var space_state = get_world_2d().direct_space_state
    var query = PhysicsRayQueryParameters2D.create(global_position, target_position,
        collision_mask, [self])
    var result = space_state.intersect_ray(query)

using Godot;

public partial class MyCharacterBody2D : CharacterBody2D
{
    public override void _PhysicsProcess(double delta)
    {
        var spaceState = GetWorld2D().DirectSpaceState;
        var query = PhysicsRayQueryParameters2D.Create(globalPosition, targetPosition,
            CollisionMask, [GetRid()]);
        var result = spaceState.IntersectRay(query);
    }
}

关于如何设置碰撞掩码, 请参阅代码示例 .

来自屏幕的 3D 光线投射

将射线从屏幕投射到 3D 物理空间对于拾取对象非常有用。没有必要这样做，因为 CollisionObject3D 有一个“input_event”信号，可以让你知道何时点击它，但如果你希望手动执行该操作，可这样。

要从屏幕投射光线，你需要一个 Camera3D 节点。Camera3D 可以有两种投影模式：透视和正交。因此，必须获取射线原点和方向。这是因为 origin 在正交模式下会发生变化，而 normal 在透视模式下会发生变化：

要使用相机获取它, 可以使用以下代码:

const RAY_LENGTH = 1000.0

func _input(event):
    if event is InputEventMouseButton and event.pressed and event.button_index == 1:
          var camera3d = $Camera3D
          var from = camera3d.project_ray_origin(event.position)
          var to = from + camera3d.project_ray_normal(event.position) * RAY_LENGTH

private const float RayLength = 1000.0f;

public override void _Input(InputEvent @event)
{
    if (@event is InputEventMouseButton eventMouseButton && eventMouseButton.Pressed && eventMouseButton.ButtonIndex == MouseButton.Left)
    {
        var camera3D = GetNode<Camera3D>("Camera3D");
        var from = camera3D.ProjectRayOrigin(eventMouseButton.Position);
        var to = from + camera3D.ProjectRayNormal(eventMouseButton.Position) * RayLength;
    }
}

请记住，在 _input() 期间空间可能被锁定，所以实践中应该在 _physics_process() 中运行这个查询。
